3G Circular

Gencoa's third generation range of small circular magnetrons - available in target diameters of 2" to 5" - are designed to operate under a low pressure range, and include ±45° tilt adjustment, gas injection and a rear utility box for DC, DC-pulsed, RF and HIPIMS processes as standard.

The 3G circular range of HV sources from Gencoa caters for applications from R&D to small scale production.

With minimal use of polymer and newly-developed magnetics, the sources can perform in the 10-6 Torr range, delivering improvements to the deposition rate, reduced arcing, fewer impurities and a higher density coating.

The sources can be fitted with a choice of magnetic and mechanical options, leading to performance benefits appropriate for differing applications, and are built to reliably work with DC, RF, pulsed DC and HiPIMS power supplies.

High yield (HY) magnetics can be fitted to target diameters of 4” and above for sputtering of precious metals, delivering target usage of 40%.

Key features

  • Low pressure sputtering (10-6 to 10-2 torr)

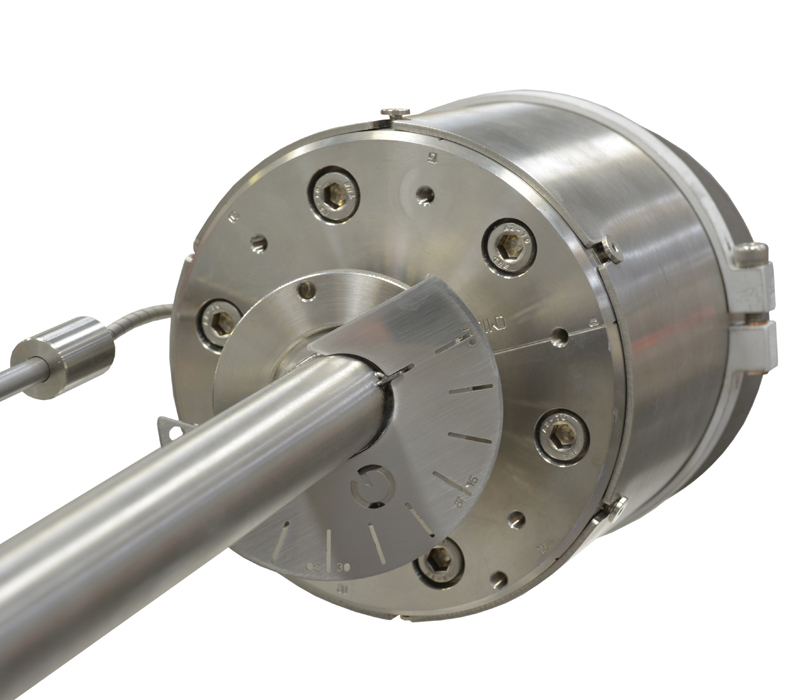

  • ± 45º tilt angle adjustment (1° accuracy)
  • Standard target sizes
  • High yield (HY) magnetics available for 4" and 5" target diameters, delivering >40% target usage
  • Internal gas injection as standard
  • Rear utility box as standard for RF and HIPIMS
  • Easy target change and choice of target thickness (1-6mm)
  • High strength magnetics for sputtering of magnetic material
  • Indirect or direct target cooling (pre-configured)

Mechanical options

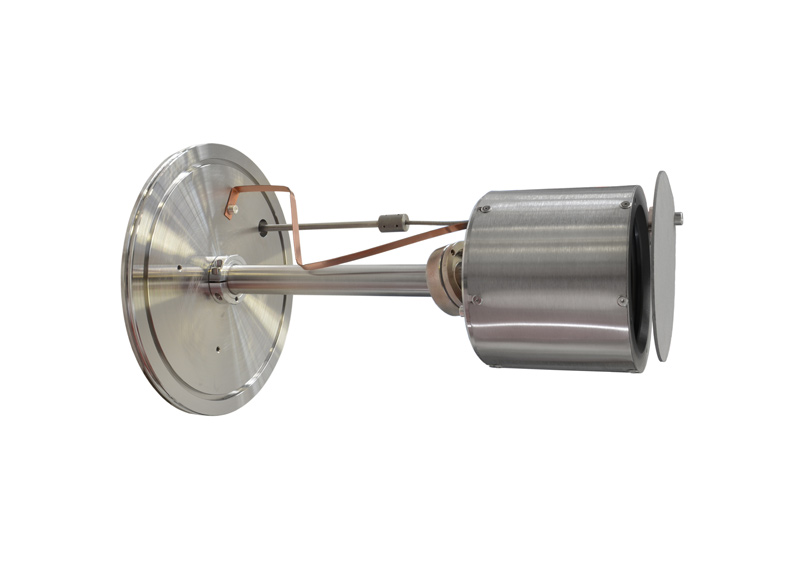

All magnetrons in the 3G circular range are available for internal or external mount, with the following additional options: manual or pneumatic shutter, chimney, wallmount feedthrough, hidden/water-cooled anode.


The table below shows the different options of 3G circular magnetrons, along with each of the included mechanical options. Click on the PDF icons to download dimensional drawings for the required target size.

    Tilt Gas injection Utility box 2" 3" 4"
3G Internal sw50-3g circular magnetron drawing sw75-3g circular magnetron drawing sw100-3g circular magnetron drawing
3G-A Internal   sw50-3g(A) circular magnetron drawing sw75-3g(A) circular magnetron drawing sw100-3g(A) circular magnetron drawing
3G-B Internal     sw50-3g(B) circular magnetron drawing sw75-3g(B) circular magnetron drawing sw100-3g(B) circular magnetron drawing
3G-C Internal   sw50-3g(C) circular magnetron drawing sw75-3g(C) circular magnetron drawing sw100-3g(C) circular magnetron drawing

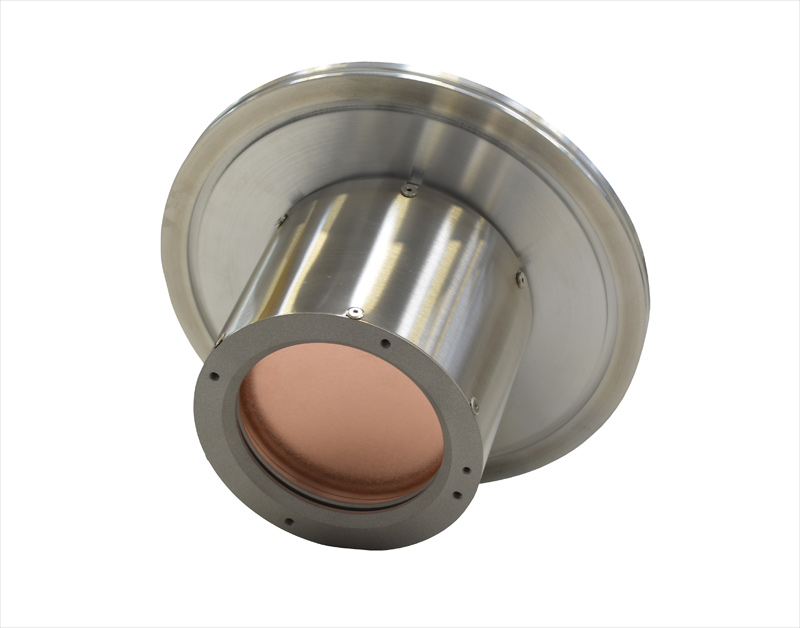

3G-E External     sw50-3g(E) circular magnetron drawing sw75-3g(E) circular magnetron drawing sw100-3g(E) circular magnetron drawing

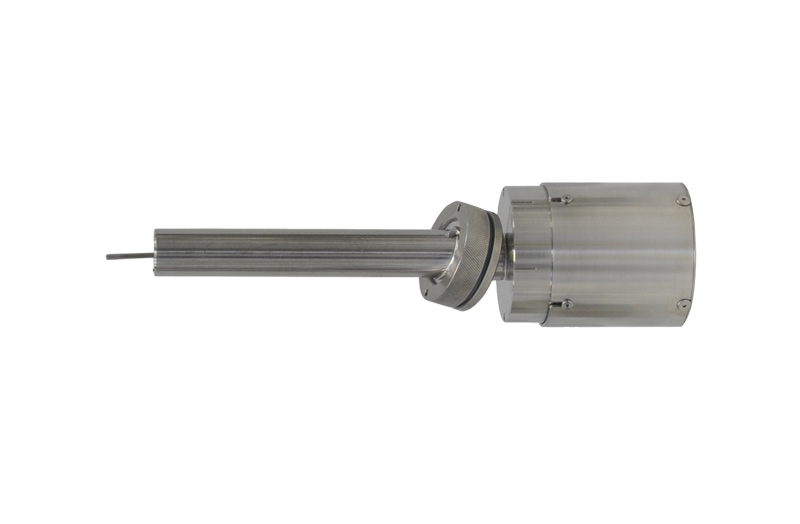

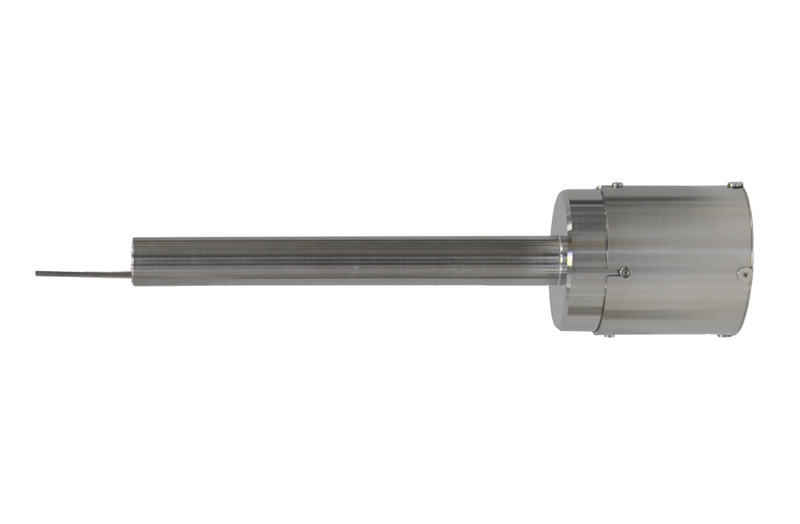

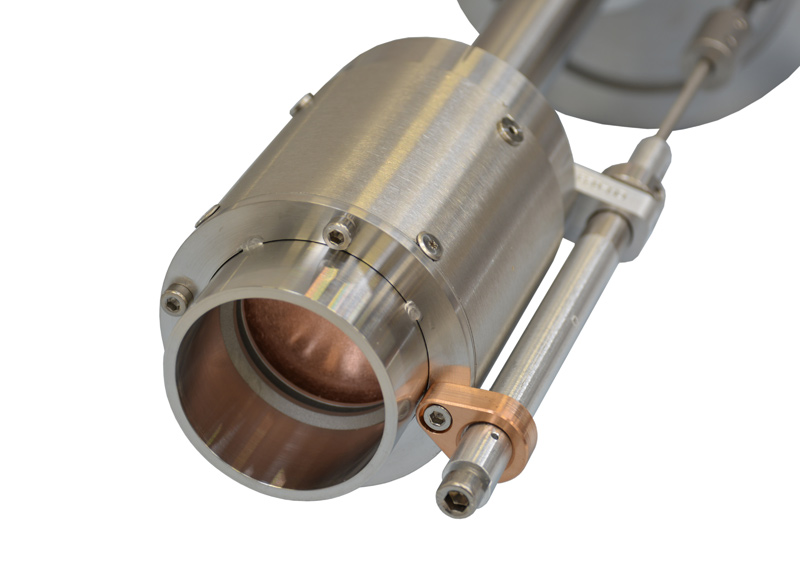

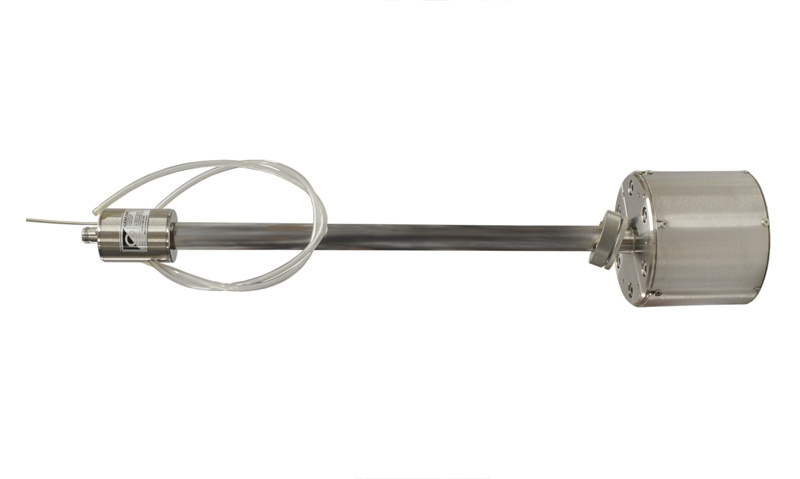

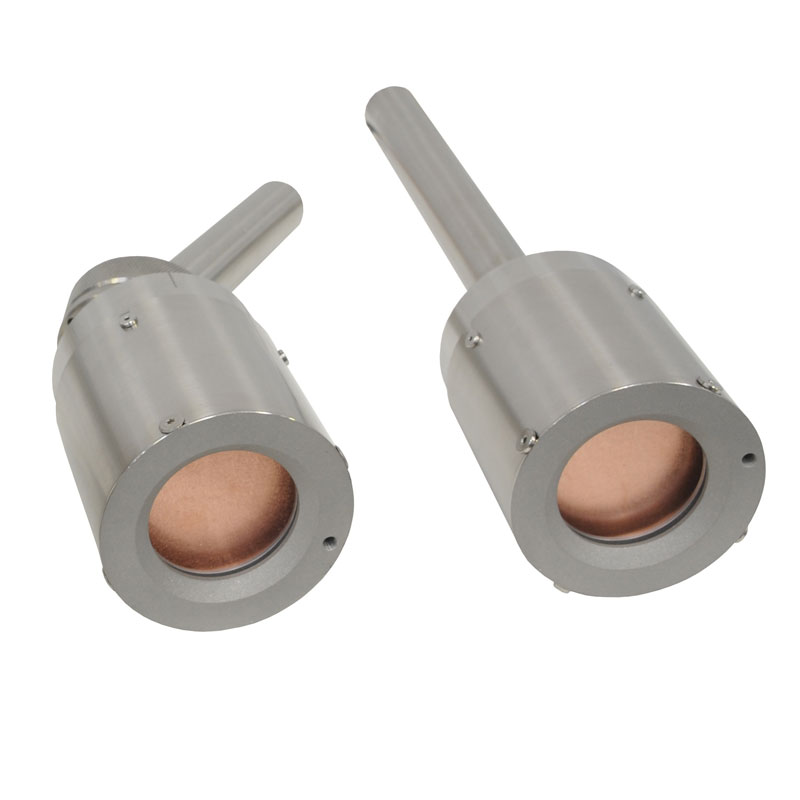

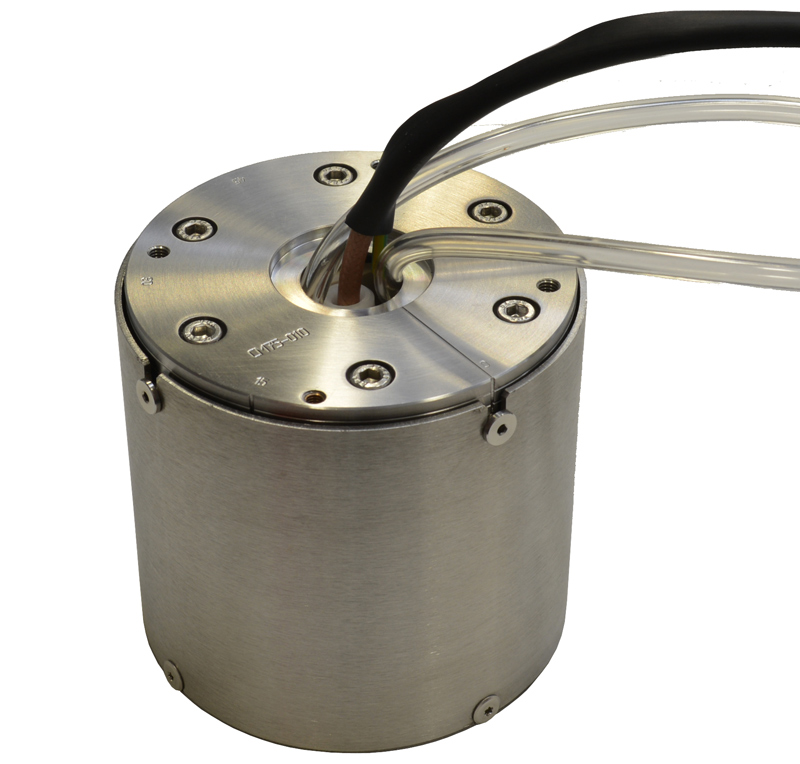

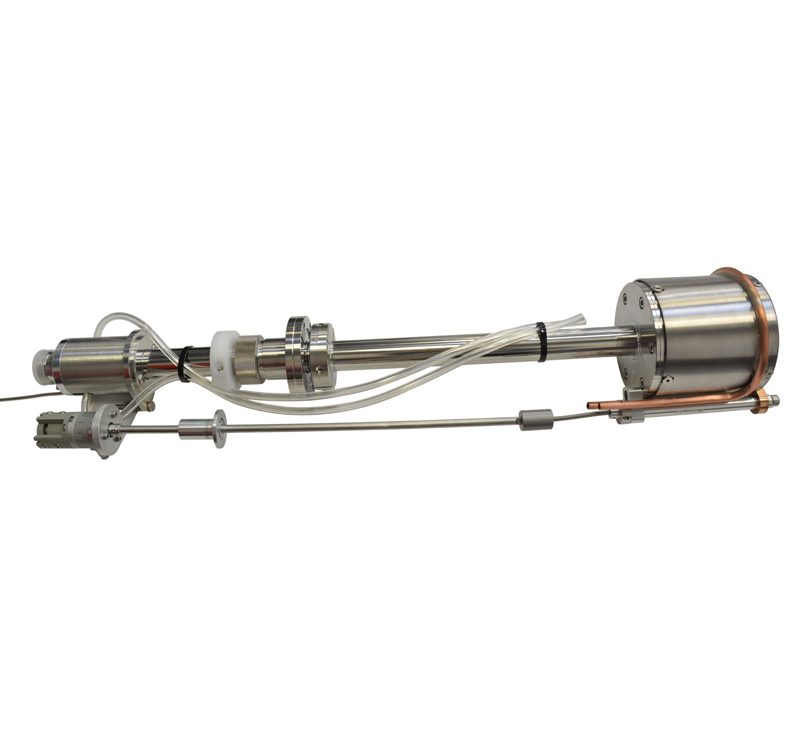

Gencoa 3G circular plasmaGencoa 3G circular plasmaGencoa 3G circular plasmaGencoa 3G circular plasmaGencoa 3G circular plasmaGencoa 3G-E circular magnetron3G Circular3G circular with full set of mechanical optionsGencoa 3G circular magnetron (3G-B)Gencoa 3G circular magnetron (3G-C)Gencoa 3G circular magnetronGencoa 3G circular magnetron with sputter chimneyGencoa 3G circular magnetron with shutter optionGencoa external 3G circular magnetron5" circular magnetron plasma3G circular magnetron3G circular plasma with 5" target
